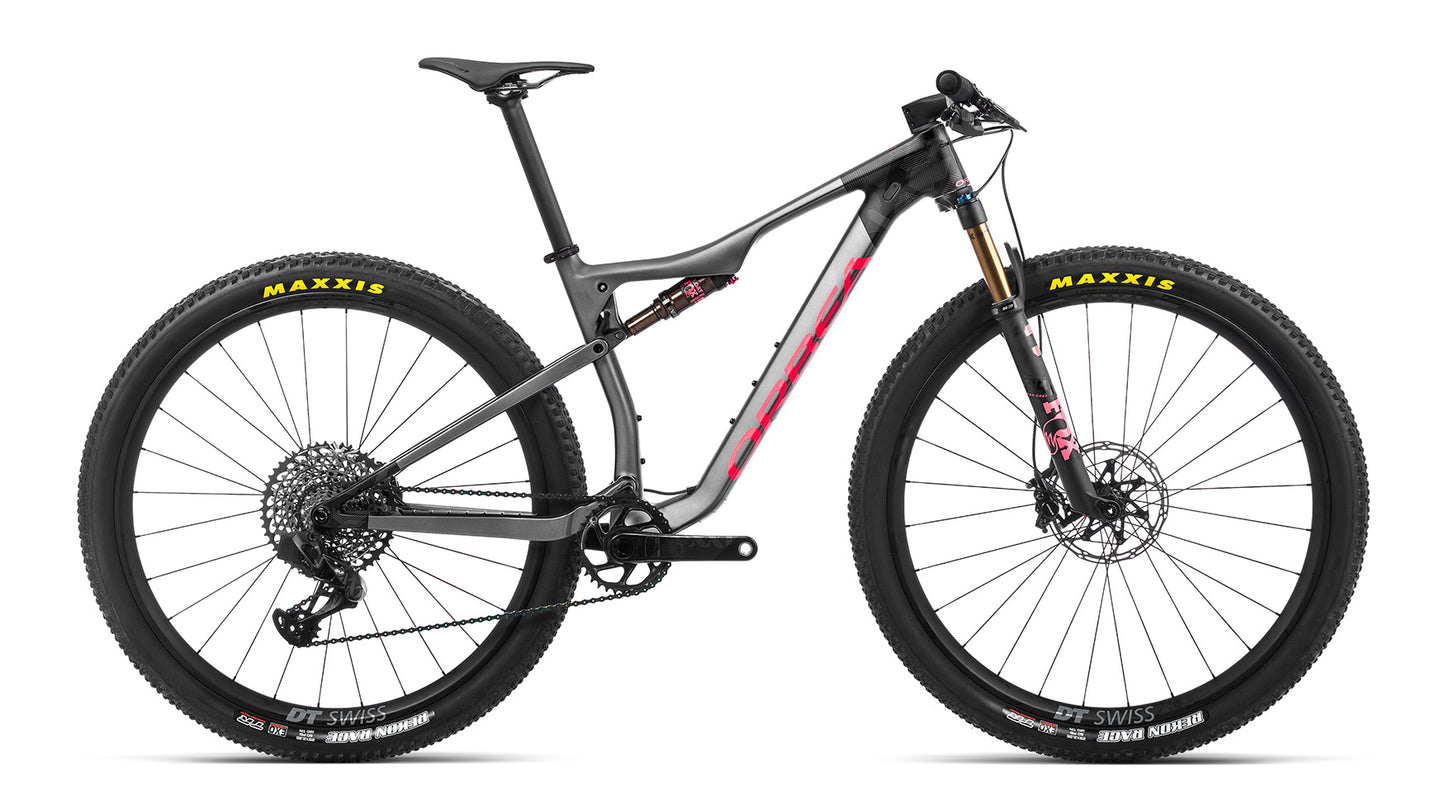

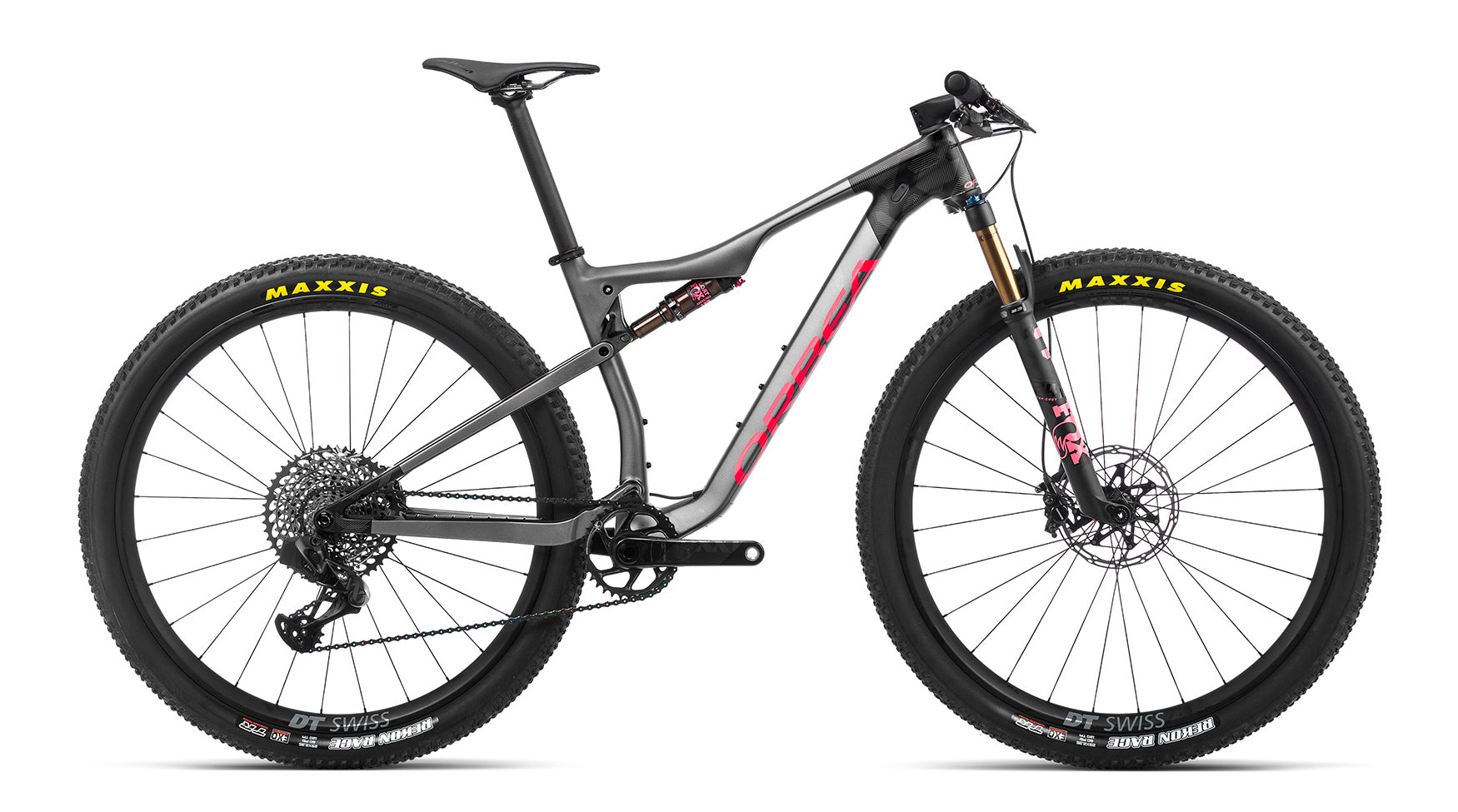

2022 Orbea Oiz M LTD
2022 Orbea Oiz M LTD
Regular price
$6,999.00 USD
Regular price
$10,999.00 USD
Sale price
$6,999.00 USD
Unit price
/
per
Couldn't load pickup availability
Frame Material Details
OMX carbon front and rear triangles, FiberLink, molded chainstay protection
Rear Travel
100mm
Rear Shock
FOX FLOAT DPS Factory, EVOL, OC Squidlock 3-position remote lockout, Kashima coating, custom tune, 190mm x 40mm
Fork
FOX FLOAT 34 Step-Cast (SC) Factory, FIT4 damper, OC Squidlock 3-position remote lockout, Kashima coating, 44mm offset
Fork Travel
100mm
Head Tube Diameter
Tapered, 1.125" top, 1.5" bottom
Headset
ACROS, alloy, integrated
Handlebar
OC MP10 Mountain Performance Carbon, 760mm width, 9° sweep
Stem
OC MP20 Mountain Performance, 8° drop
Length: 60mm (SM), 75mm (MD/LG), 90mm (XL)
Length: 60mm (SM), 75mm (MD/LG), 90mm (XL)
Grips
Brakes
SRAM Level Ultimate, 2-piston, CENTER LOCK rotors
Option: Shimano XTR M9100, 2-piston
Option: Shimano XTR M9100, 2-piston
Brake Levers
SRAM Level Ultimate, carbon blades
Option: Shimano XTR M9100
Option: Shimano XTR M9100
Drivetrain
1x
Shifters
SRAM XX1 Eagle AXS Controller, 12-speed, electronic wireless
Front Derailleur
None
Rear Derailleur
SRAM XX1 Eagle AXS, 12-speed, electronic wireless
ISCG Tabs
None
Chainguide
OC upper slider
Cranks
SRAM XX1 Eagle DUB
Length: 170mm (SM), 175mm (MD/LG/XL)
Length: 170mm (SM), 175mm (MD/LG/XL)
Chainrings
SRAM XX1 Eagle, 34 tooth
Bottom Bracket
SRAM DUB, PF92 PressFit
Pedals
None
Chain
SRAM XX1 Eagle, 12-speed, Rainbow finish
Cassette
SRAM XX1 Eagle XG-1299, 12-speed, 10-50 tooth, Rainbow finish
Rims
DT Swiss XRC-1200 Spline wheelset, 30mm inner width, tubeless ready
Hubs
DT Swiss XRC-1200 Spline wheelset, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Spokes
DT Swiss XRC-1200 Spline wheelset
Tires
Maxxis Rekon Race, EXO casing, TR, 120 TPI, 29" x 2.35"
Saddle
Selle Italia SLR Boost Fill, Carbon Keramic rails
Seatpost
OC2 XP10 Performance Carbon, zero offset, micro tilt adjustment
Seatpost Diameter
31.6mm
Seatpost Clamp
Single bolt
Rear Dropout / Hub Dimensions
148x12mm Boost
Max. Tire Size
29" x 2.4"
Bottle Cage Mounts
One (SM) or two (MD/LG/XL) inside front triangle
Colors

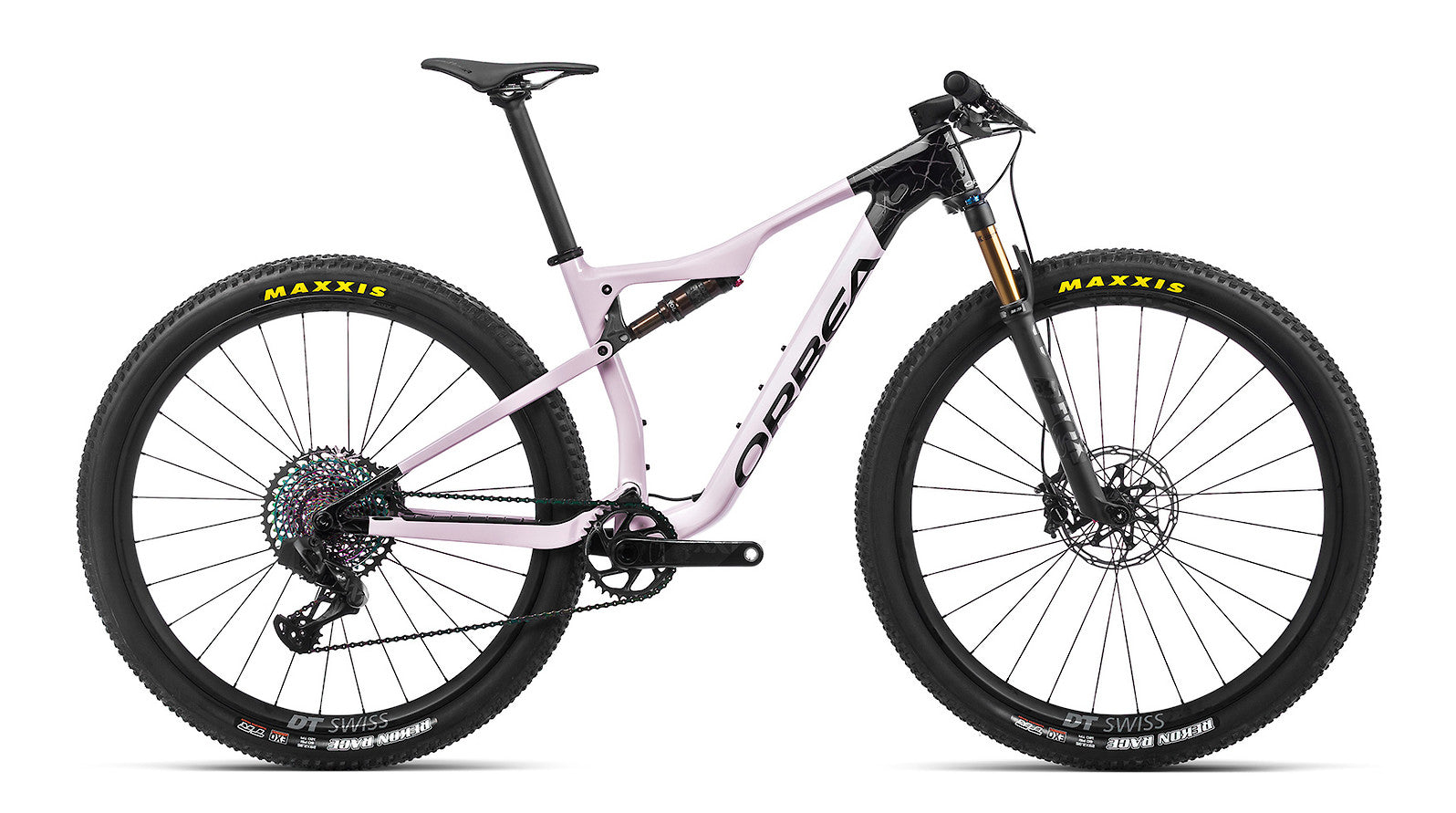

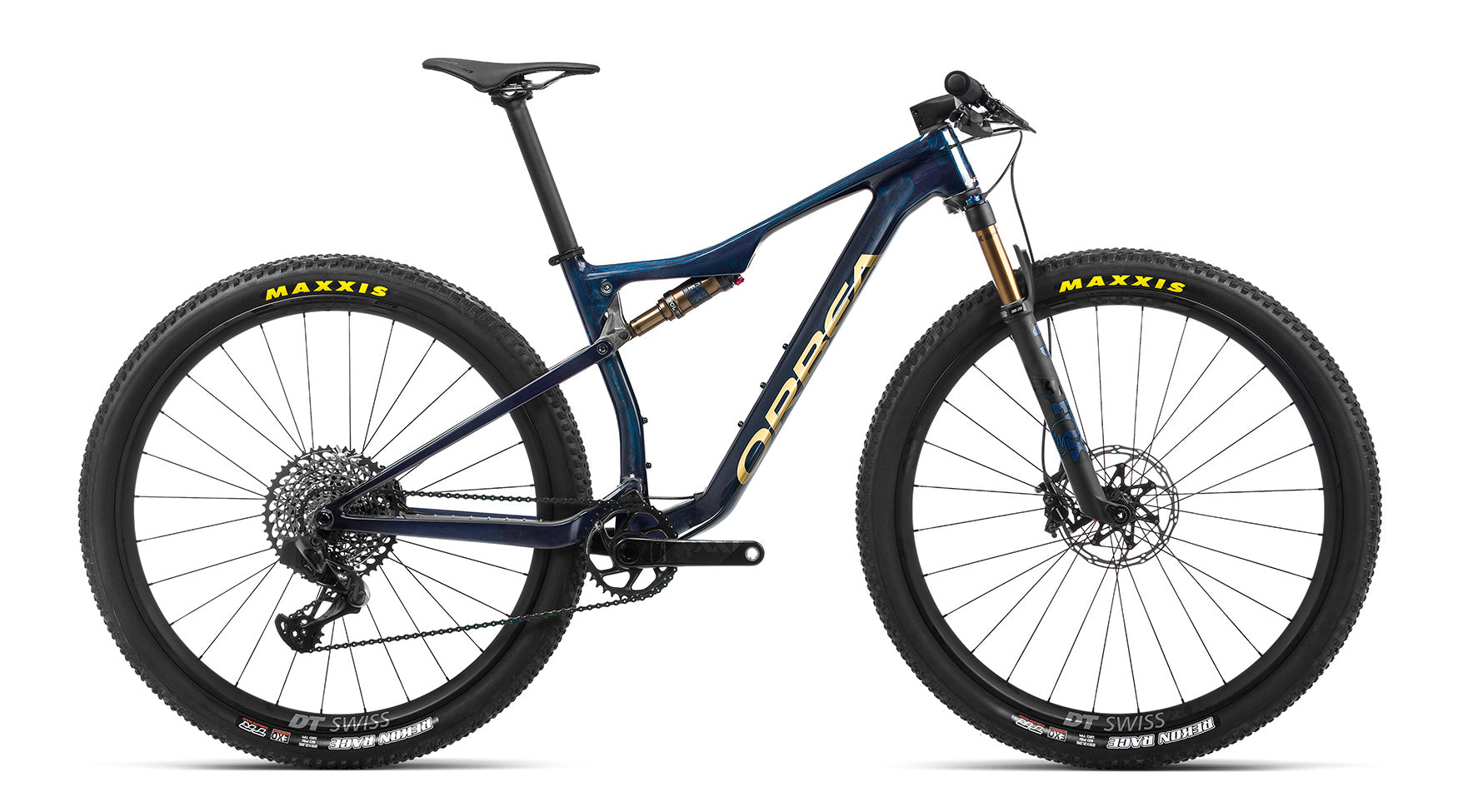

Pink/Marble, Carbon Blue/Gold, Glitter Anthracite/Coral, Factory; customizable via Orbea MyO program
Warranty
Lifetime frame, 2 years paint and finish
Weight
Miscellaneous
• Advanced Dynamics flexstay single pivot rear suspension design
• Includes OC Squidlock 3-position remote lockout lever
• Internal cable routing
• Frame weight: 1740g (size MD, with shock)
• Includes SRAM AXS Powerpack battery charger
• Includes OC Squidlock 3-position remote lockout lever
• Internal cable routing
• Frame weight: 1740g (size MD, with shock)
• Includes SRAM AXS Powerpack battery charger
Price
$10,999.00
