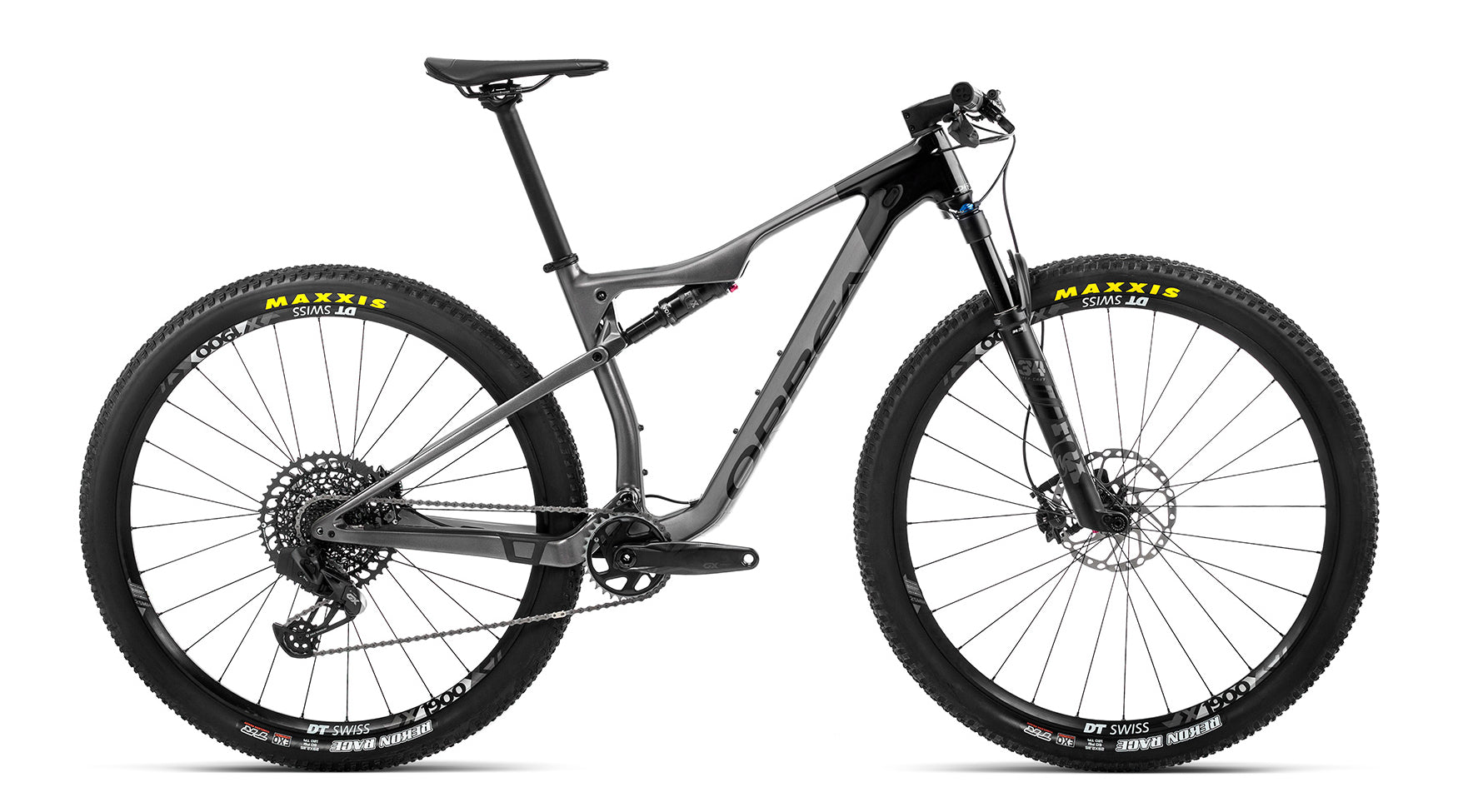

2022 Orbea Oiz M11 AXS
2022 Orbea Oiz M11 AXS
Regular price
$3,599.00 USD
Regular price
$5,599.00 USD
Sale price
$3,599.00 USD
Unit price
/
per
Couldn't load pickup availability
Frame Material
Carbon Fiber
Frame Material Details
OMR (Orbea Monocoque Race) carbon front and rear triangles, AlloyLink, molded chainstay protection
Rear Travel
100mm
Rear Shock
FOX FLOAT DPS Performance, EVOL, OC 3-position remote lockout, custom tune, 190mm x 40mm
Fork
FOX FLOAT 34 Step-Cast (SC) Performance, FIT4 damper, OC 3-position remote lockout, 44mm offset
Option: FOX FLOAT 32 Step-Cast (SC) Performance
Option: FOX FLOAT 32 Step-Cast (SC) Performance
Fork Travel
100mm
Head Tube Diameter
Tapered, 1.125" top, 1.5" bottom
Headset
ACROS, alloy, integrated
Handlebar
OC MP10 Mountain Performance Carbon, 760mm width
Stem
OC MP20 Mountain Performance, 8° drop
Length: 60mm (SM), 75mm (MD/LG), 90mm (XL)
Length: 60mm (SM), 75mm (MD/LG), 90mm (XL)
Grips
Brakes
Shimano Deore XT M8100, 2-piston, CENTER LOCK rotors
Brake Levers
Shimano Deore XT M8100
Drivetrain
1x
Shifters
SRAM GX Eagle AXS Controller, 12-speed, electronic wireless
Front Derailleur
None
Rear Derailleur
SRAM GX Eagle AXS, 12-speed, electronic wireless
ISCG Tabs
None
Chainguide
OC upper slider
Cranks
SRAM GX Eagle DUB
Length: 170mm (SM), 175mm (MD/LG/XL)
Length: 170mm (SM), 175mm (MD/LG/XL)
Chainrings
SRAM GX Eagle, 32 tooth
Bottom Bracket
SRAM DUB, PF92 PressFit
Pedals
None
Chain
SRAM GX Eagle, 12-speed
Cassette
SRAM GX Eagle XG-1275, 12-speed, 10-52 tooth
Rims
DT Swiss X-1900 Spline wheelset, 25mm inner width, tubeless ready
Hubs
DT Swiss X-1900 Spline wheelset, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Spokes
DT Swiss X-1900 Spline wheelset
Tires
Maxxis Rekon Race, EXO casing, TR, 120 TPI, 29" x 2.35"
Saddle
fi'zi:k Taiga, S-alloy rails
Options: Selle Italia SLR Boost SuperFlow; Selle Italia SLR Boost Fill, titanium rails
Options: Selle Italia SLR Boost SuperFlow; Selle Italia SLR Boost Fill, titanium rails
Seatpost
OC2, forged head, zero offset
Seatpost Diameter
31.6mm
Seatpost Clamp
Single bolt
Rear Dropout / Hub Dimensions
148x12mm Boost
Max. Tire Size
29" x 2.4"
Bottle Cage Mounts
One (SM) or two (MD/LG/XL) inside front triangle
Colors

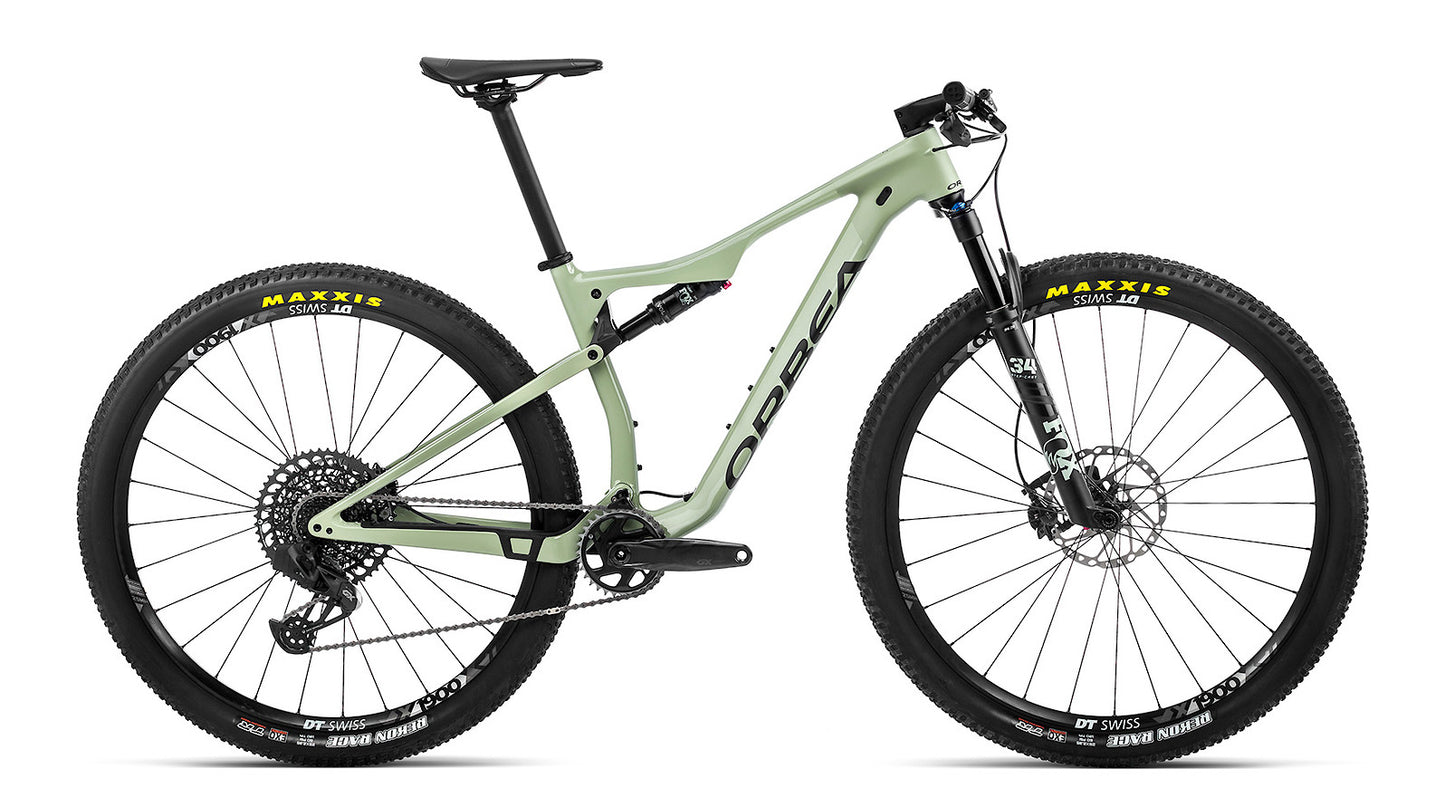

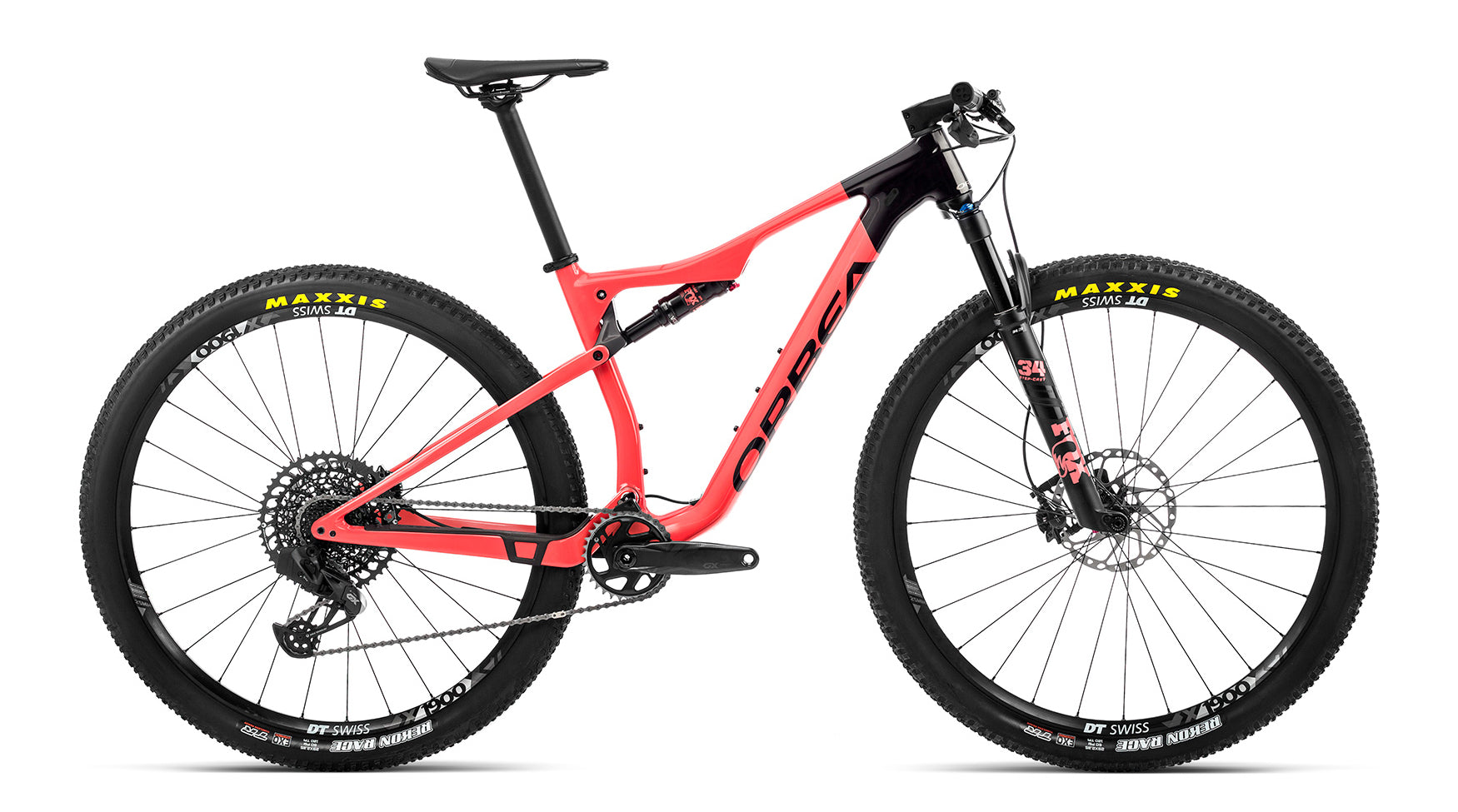

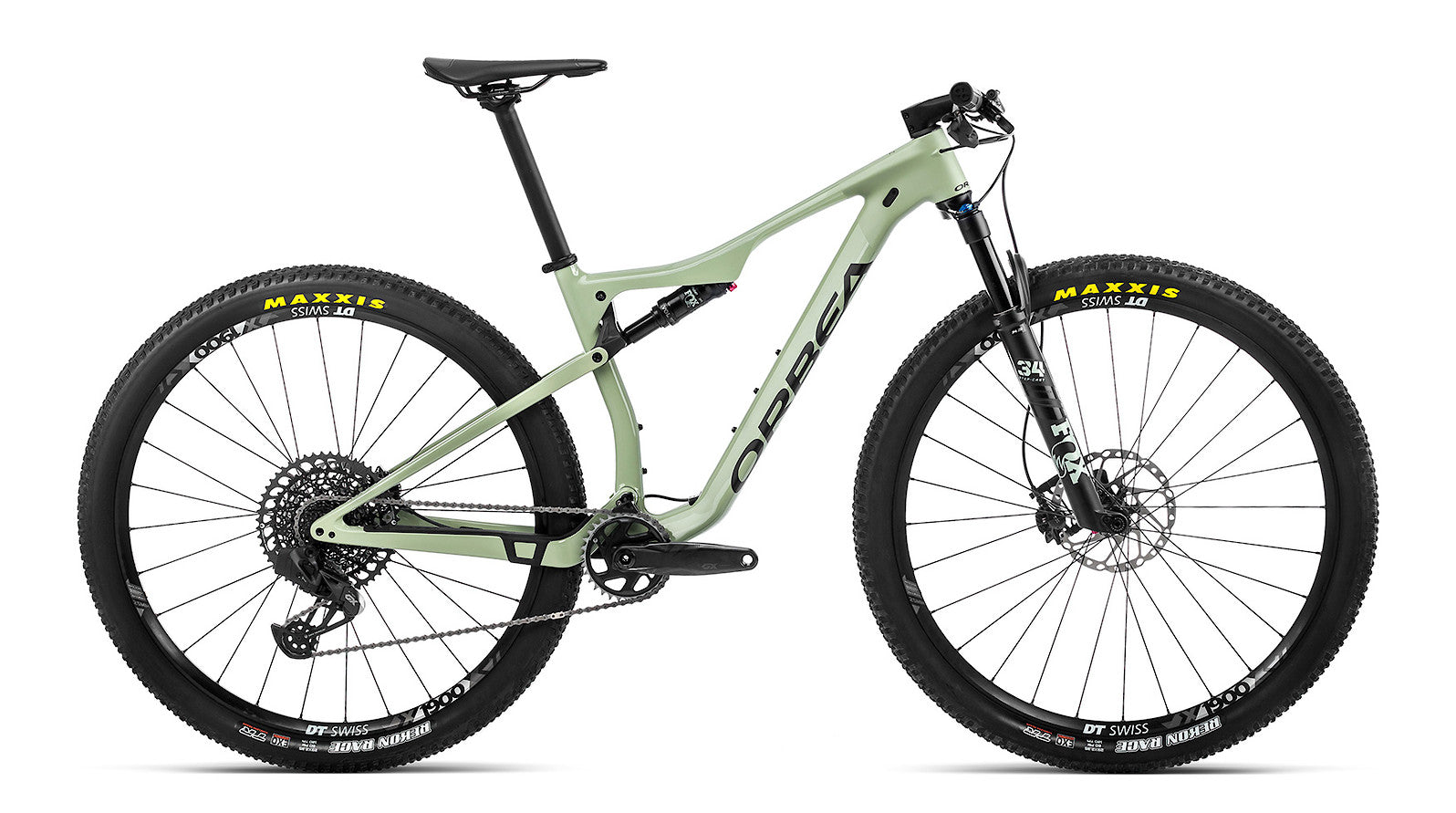

Antracita Glitter/Black, Coral/Black, Lichen Green/Black
Warranty
Lifetime frame, 2 years paint and finish
Weight
Miscellaneous
• Advanced Dynamics flexstay single pivot rear suspension design
• Includes OC MP20 Mountain Performance 3-position remote lockout lever
• Internal cable routing
• Includes SRAM AXS Powerpack battery charger
• Includes OC MP20 Mountain Performance 3-position remote lockout lever
• Internal cable routing
• Includes SRAM AXS Powerpack battery charger
Price
$5,599.00
