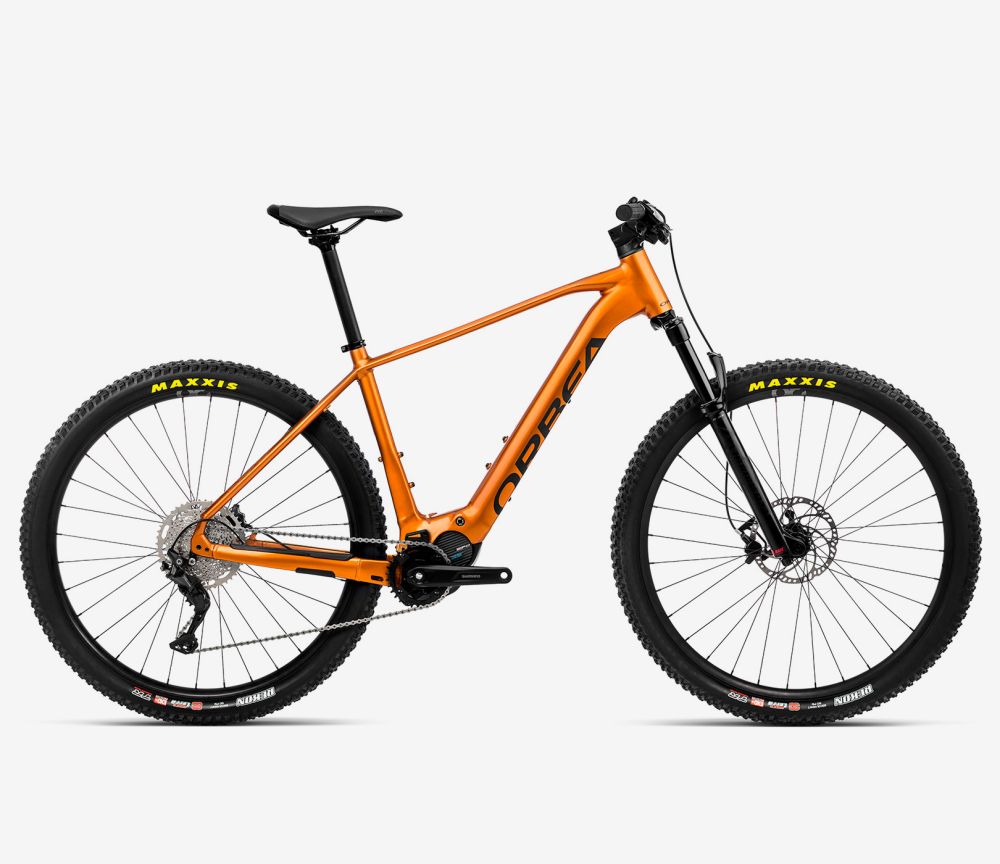

Orbea Urrun 30 E-Bike
Model Year
2022
Riding Type
Cross Country
Trail
Rider
Unisex
Sizes and Geometry
SM

MD

LG

XL

Wheel Size
29"
E-Bike Class
Class 1: Pedal Assist (Pedelecs)
Motor
Shimano STEPS EP8-RS (Ride Synergy)
Battery
Orbea, integrated; optional 252 Wh range extender available
Battery Capacity
540 Wh
Display/Remote
Shimano STEPS E5003
Modes
Boost, Trail, Eco, Walk Assist
Max Speed with Assist
20 mph (32 km/h)
Frame Material
Aluminum
Frame Material Details
Hydroformed 6061 triple-butted alloy, molded chainstay protection
Rear Travel
Hardtail
Rear Shock
None
Fork
Marzocchi Bomber Z2, e-bike optimized, 44mm offset
Fork Travel
120mm
Head Tube Diameter
Straight, 1.5"
Headset
FSA, integrated, aluminum cups
Handlebar
Orbea OC, 780mm width, 20mm rise, 35mm clamp diameter
Stem
Orbea OC1, 70mm length, 6° drop, 35mm bar clamp
Grips

Brakes
Magura MT30, 2-piston
Brake Levers
Magura MT30
Drivetrain
1x
Shifters
Shimano Deore M4100, 10-speed
Front Derailleur
None
Rear Derailleur
Shimano Deore M5120, 10-speed, SHADOW RD+, SGS cage
Chainguide
Orbea upper slider
Cranks
Shimano STEPS EM600, 170mm length
Chainrings
Shimano STEPS EP8, alloy, 32 tooth
Pedals
VP-537 platform
Chain
KMC e10 Turbo, 10-speed
Cassette
Shimano Deore M4100, 10-speed, 11-46 tooth
Rims
Orbea OC1 29c wheelset, tubeless ready
Hubs
Orbea OC1 29c wheelset, 15x110mm Boost front, 12x148mm Boost rear with HG driver
Spokes
Orbea OC1 29c wheelset
Tires
Maxxis Rekon, 3C MaxxTerra, EXO+, TR, 120 TPI, 29" x 2.4"
Saddle
Selle Royal Vivo
Seatpost
Alloy, zero offset
Seatpost Diameter
31.6mm
Seatpost Clamp
Single bolt
Rear Dropout / Hub Dimensions
12x148mm Boost
Max. Tire Size
29" x 2.6"
Bottle Cage Mounts
Two inside front triangle
Colors
Leo Orange Gloss/Black Matte, Glitter Anthracite Gloss/Black Matte, Borealis Blue Matte/Luminous Yellow Gloss
Warranty
Lifetime frame, 2 years paint and finish
Weight

Miscellaneous
• Internal cable routing
• Rack, kickstand, and trailer compatible
• Includes Orbea 42V 4A Smart Charger
• Motor settings customizable via Shimano E-Tube app
Price
$4,299.00
